Description

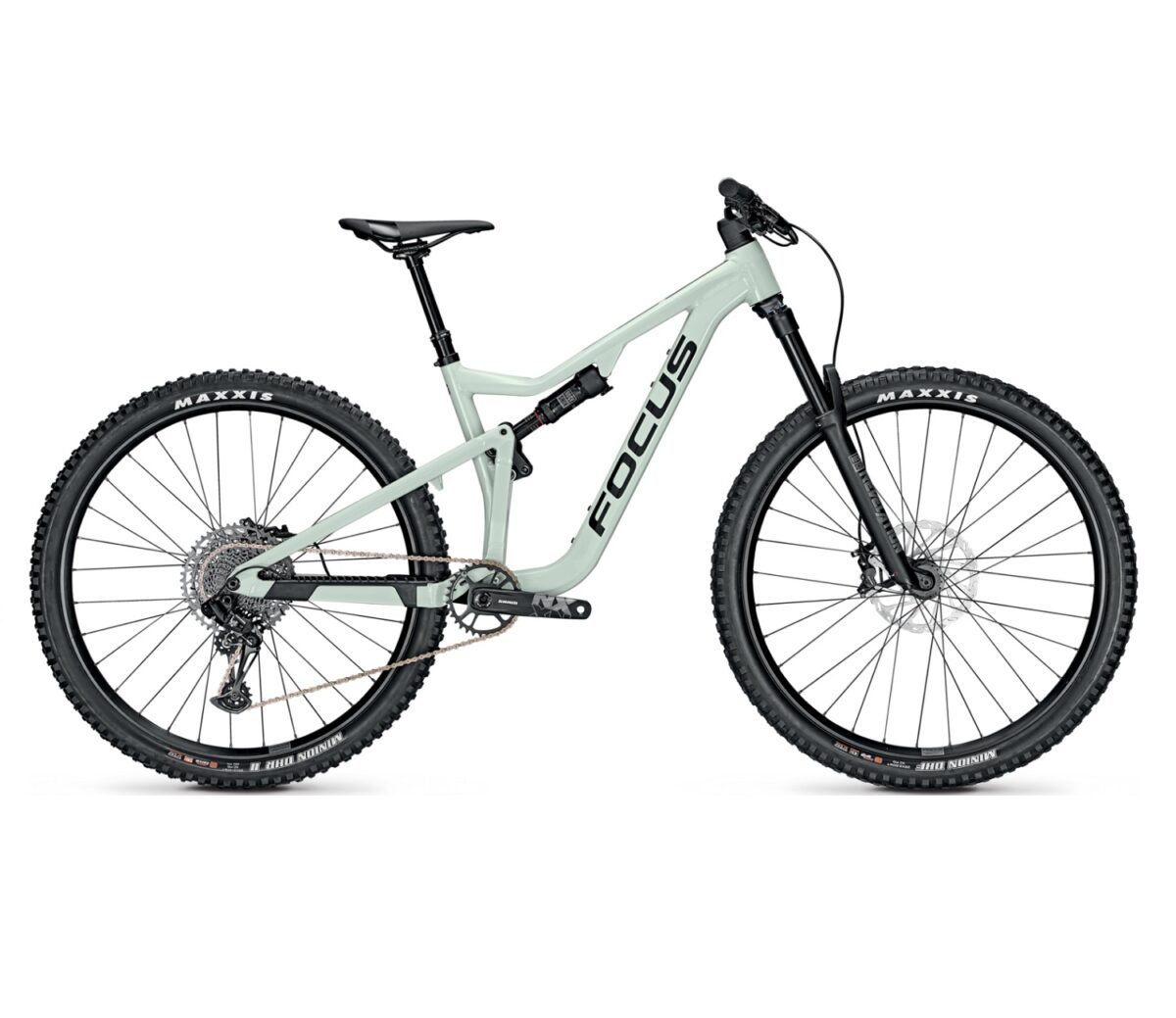

Focus Jam 6.8
The Focus JAM 6.8 is made for your inner child: playful and intuitive you get the most fun out of every ride. The geometry is well-balanced for your rides in tough terrain: An agile handling merges with a lot of safety resources of the chassis providing confidence in rough downhills. You are perfectly-seated in the middle of the bike to be in control of any situation and to easily pedal up all the steep hills on your ride. The FLIP CHIP at your linkage can be used to adjust your geometry to an even more aggressive riding style. The small adjustment of the head angle from 65.5° to 65° changes your set-up making it even more downhill-oriented.
It’s all about details: the specially developed C.I.S. (Cockpit Integration Solution) design ensures a clean cockpit and constantly seamless shifting and braking. All cables run from the handlebar into the stem and through the headset into the frame. Furthermore, the Focus JAM 6.8 comes with a tool bag between the top and down tube angle. The tool bag offers space for all your essentials like a multi-tool, tube and a small pump.
Overview
- Hydroforming aluminium frame with fully integrated C.I.S. Cable routing and smartly attached tool bag
- 150 mm travel with new F.O.L.D. Kinematics optimized for more progression: Rockshox Revelation suspension fork and Deluxe Select rear shock
- Trail-ready: Sram NX Eagle 1×12 shifting
Specifications
- Model: Focus Jam 6.8
- Sizes (contact us for availability): 47 (XL), 45 (L), 42 (M), 39 (S)
- Color: SkyGrey
- Frame size: 47 (XL), 45 (L), 42 (M), 39 (S)
- Groupset: Sram SX Eagle
- Weight: 16 kg
- Frame: 7005 hydroformed aluminium, 3D forging, 150 mm F.O.L.D. kinematic, 148×12 mm thru axle, internal cable routing, post mount 180 mm
- Fork: Rock Shox Revelation RC 29 Boost, DebonAir, 110×15 mm, 46 mm rake, 150 mm travel
- Travel: 150 mm
- Shock: RockShox Deluxe Select, 210/55 mm, hardware: 25,0 x 8mm, custom tune
- Shift/brake lever: SRAM G2 R, SRAM SX Eagle, 12-speed
- Rear derailleur: SRAM NX Eagle, 12-speed
- Sprocket: Sram PG-1210 Eagle, 12-speed
- Chain: SRAM SX Eagle, 12-speed
- Crank set: SRAM NX Eagle
- Transmission: front: 32, rear: 11-50
- Bottom bracket: BSA
- Handlebar: FOCUS Trail, aluminium, riserbar, 780mm, rise: 30mm, backsweep: 9 degrees
- Grip: Focus Locker SL
- Stem: JDST280QNEIN
- Saddle: Focus Trail SL
- Seat post: Post Modern dropper post PM-171, 31.6 mm
- Brake lever: SRAM G2 R
- Brakes: SRAM G2 R, 4 piston
- Brake: Disc
- Wheel rims: RODI TRYP30 FOCUS, eyelets
- Hub: Novatec D041, 15×110 mm thru axle; Novatec D462 Disc, 12×148 mm
- Spoke: Niro, black
- Tyre: Maxxis Minion DHF 2.5 WT 3C Grip EXO TR, Maxxis Minion DHR II 2.4 3C EXO+ TR
Specification may be subject to minor change.
