Description

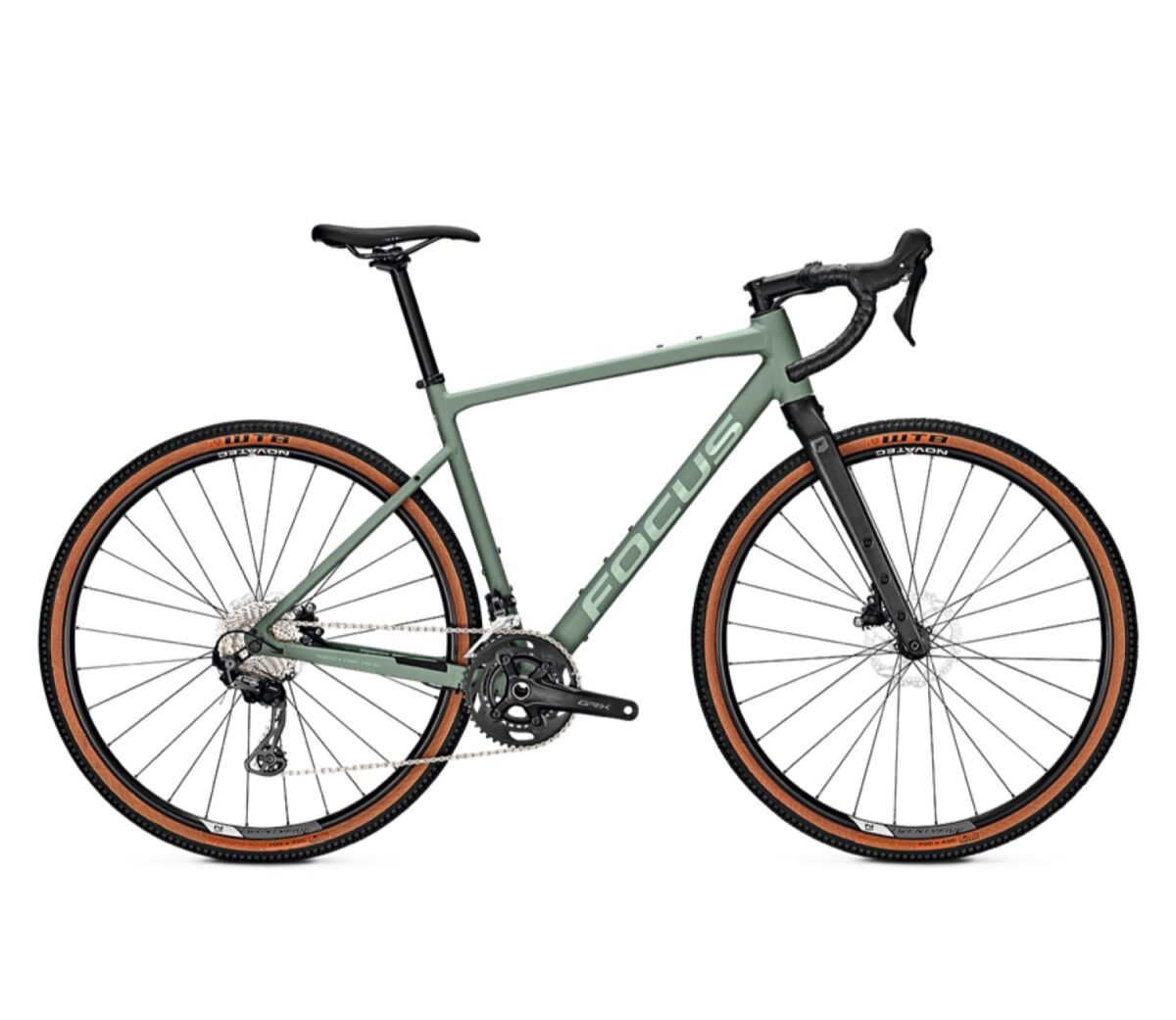

Focus Atlas 6.8 Overview
- Lightweight and robust aluminium frame & carbon fork with integrated C.I.S. cable routing and top tube bag, plus mounting points for everything you need
- Shimano GRX600 2×11 groupset with special gravel ergonomics for reliable shifting and safe braking even on rough terrain
- Reliable stability and high quality: Road Boost system wheels by Novatec with double-sealed hubs
- Aluminium frame with top tube bag
- Shimano GRX600 2×11
Specifications
- Model: Focus Atlas 6.8
- Sizes (contact us for availability): 48(XS), 51(S), 54(M), 57(L), 60(XL)
- Colour: StoneBlue, MineralGreen
- Frame: Aluminium, disc, BSA, 148×12 mm thru axle, flat mount 160/160 mm, internal cable routing, Toptube Bag
- Fork: Carbon, disc, 110×12 mm thru axle, flat mount 160/160 mm, internal brake cable routing, multiple mounting points
- Shifter: Shimano GRX ST-RX600, 11-speed
- Front Derailleur: Shimano GRX FD-RX810
- Rear Derailleur: Shimano GRX RD-RX810, 11-speed
- Sprocket: Shimano 105 R7000, 11-speed
- Chain: Shimano CN-HG601, 11-speed
- Crankset: Shimano GRX FC-RX600 , 11-speed / Easton EA90 , 11-speed
- Transmission Of Drive: front: 46/30, rear: 11-34
- Bottom Bracket: BSA
- Handlebar: FOCUS JD RA85, Aluminium, 31.8 mm, drop: 116 mm, reach: 74 mm, flare: 10°
- Stem: Aluminium, 31,8 mm, 6°
- Headset: ACROS IS 52/286-IS52/40 (ICR), FOCUS integrated C.I.S.
- Saddle: WTB SL8
- Seatpost: Aluminium, 27.2 mm, 0 mm set-back
- Brake Caliper: Shimano GRX ST-RX400 + BR-RX400
- Brake Lever: Shimano GRX BL-RX600, 11-speed
- Brake: Disc
- Wheelset: Novatec 25 Elite, 25-622, disc, center lock, front: 110×12 mm, rear: 148×12 mm
- Tyres: WTB Riddler, 700 x 45C, folding
- Gears: 22
- Bike Weight: 10.8kg
Specification subject to minor changes.
Comfortable and control on any terrain
Whether bad weather, demanding surface, steep climbs or long distances – the robust and comfortable Focus Atlas 6.8 offers full control thanks to an adapted frame geometry, wide handlebars with flare and disc brakes. The clean cockpit with C.I.S. cable routing from the handlebar directly into the headset avoids any hustle when installing a handlebar bag. To climb every mountain even with equipment, the Shimano GRX gravel groupset comes with a pleasant transmission ratio for everyone.
Huge tyre clearance
The Focus Atlas 6.8 comes with 700c tyres and can take tyre widths up to 47 mm, but is also 650b-ready with tyre clearance up to 53 mm. Therefore, you have plenty of opportunities to set your Atlas up appropriately for your next adventure. Furthermore, the Road Boost technology provides high stability due to better spoke tension and bigger tyre clearance while still having short chainstays. No matter the objective, the Focus Atlas 6.8 fully supports your ride – even to the end of the world.
Various options to mount equipment
Five bottle cages can be mounted: On the seat tube, above the down tube, underneath the down tube and on each side of the fork. The position of the bottle cage above the down tube is adjustable to fit a frame bag. Additionally, it is possible to equip the Focus Atlas 6.8 with various features thanks to many mounting options on the aluminium frame and carbon fork. The mounting points on the fork are approved for 3 kg each side and can also be used for carrying any other equipment.
