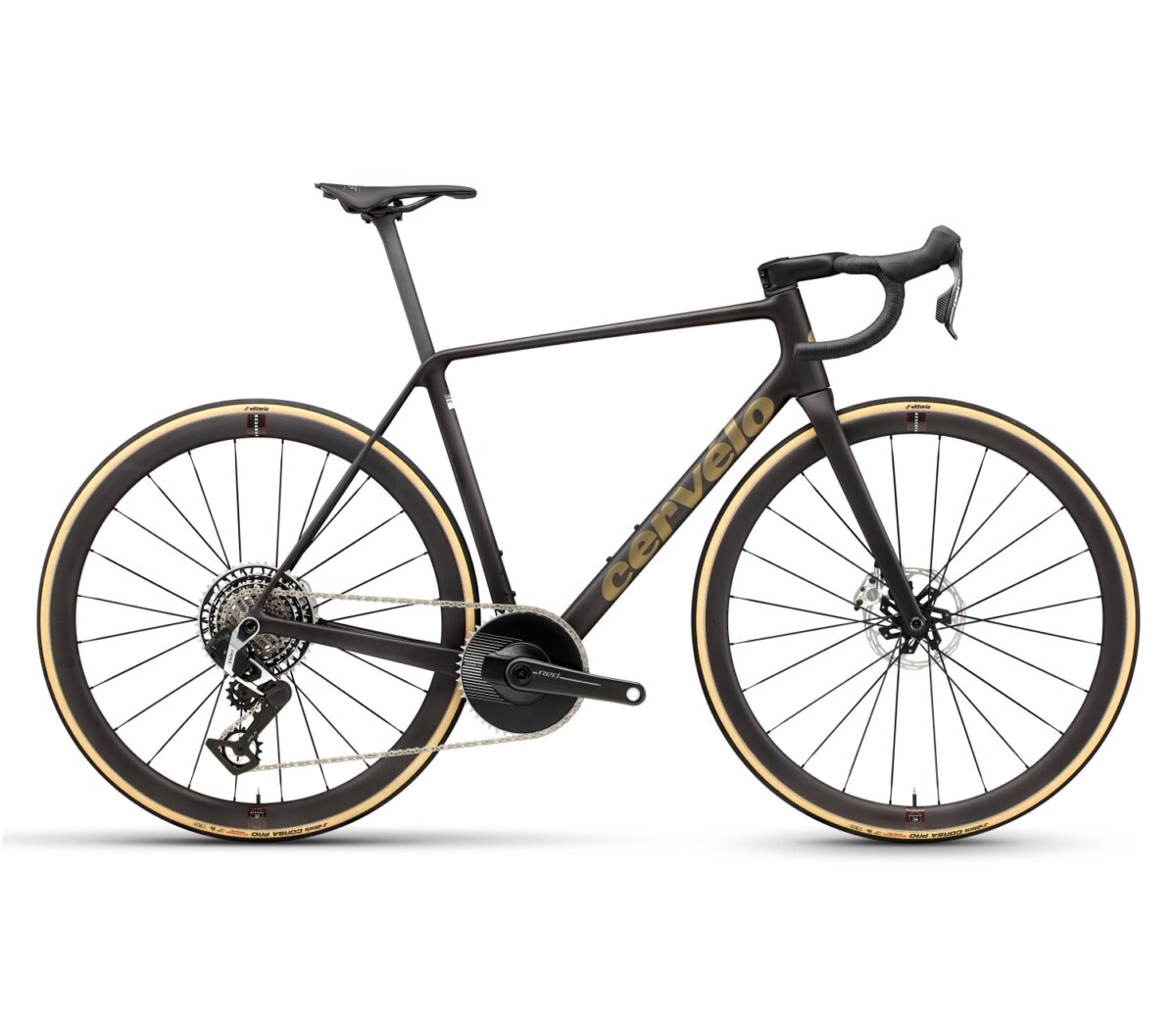

Cervelo R5 Red AXS (2026)

Key Features of the Cervelo R5 2026

• Massive weight saving — the new R5 (size 56) builds up to just 5.97 kg, with frame + fork weighing only 651 g + 298 g. That’s around 100 g lighter for frame/fork plus a total ~326 g weight reduction across all Cervélo components.
• All‑new integrated cockpit — the new one‑piece HB18 handlebar/stem combo replaces the old separate bar + stem, cutting nearly 150 g and improving aerodynamics.
• Updated wheelset: Reserve 34 | 37 TA (Turbulent Aero) — lighter, custom‑laid carbon wheels optimised for real‑world wind conditions and enhancing overall weight and aero efficiency.
• Geometry and fit aligned with aero sibling — fit geometry now matches that of the aero‑focused Cervélo S5, making transitions between models smoother for riders who use both.

Specifications

• Model: Cervelo R5 Red AXS (2026)
• Colour: Five Black/Bronze, Satin Finish
• Sizes (contact for availability): 48, 51, 54, 56, 58
• Fork: Cervélo All-Carbon, Tapered R5 Fork
• Headset: FSA SL IS2 1-1/4, 45° x 45° / 1-1/2, 36° x 45°
• Seatpost: Cervélo SP33 Carbon
• Seatpost Sizing: Size 48 – 0mm, Size 51 – 0mm, Size 54 – 0mm, Size 56 – 0mm, Size 58 – 15mm, Size 61 – 15mm
• Left Shifter/Brake: SRAM Red AXS E1
• Right Shifter/Brake: SRAM Red AXS E1
• Front Derailleur: SRAM Red AXS E1
• Rear Derailleur: SRAM Red AXS E1
• Brake Rotors: SRAM Paceline X Centrelock, SRAM Paceline X Centrelock
• Front Thru Axle: Cervélo Aero Thru Axle Front, M12x1.5mm, 122mm length
• Rear Thru Axle: Cervélo Aero Thru Axle Rear, M12x1.0mm, 169mm length
• Bottom Bracket: SRAM DUB Ceramic, BBright
• Crankset: SRAM Red AXS E1, 48/35T, DUB, with power meter
• Crank Sizing: Size 48 – 165mm, Size 51 – 165mm, Size 54 – 170mm, Size 56 – 170mm, Size 58 – 172.5mm, Size 61 – 172.5mm
• Handlebar Sizing: Size 48 – 36cm, Size 51 – 38cm, Size 54 – 40cm, Size 56 – 40cm, Size 58 – 40cm, Size 61 – 40cm
• Stem Sizing: Size 48 – 80mm, Size 51 – 90mm, Size 54 – 100mm, Size 56 – 100mm, Size 58 – 110mm, Size 61 – 120mm
• 1‑Piece Handlebar/Stem: Cervélo HB18 Carbon
• Saddle: Prologo Nago R4 PAS Nack Lightweight
• Cassette: SRAM Red E1, 10‑33T, 12‑Speed
• Chain: SRAM Red E1
• Front Wheel: Reserve 34TA, DT Swiss 180, 12x100mm, 24H, centrelock, tubeless compatible
• Rear Wheel: Reserve 37TA, DT Swiss 180, 12x142mm, XDR freehub, 24H, centrelock, tubeless compatible
• Tyre: Vittoria Corsa Pro Speed TLR G2.0 700x26c
• Max Tyre Width: 34mm
